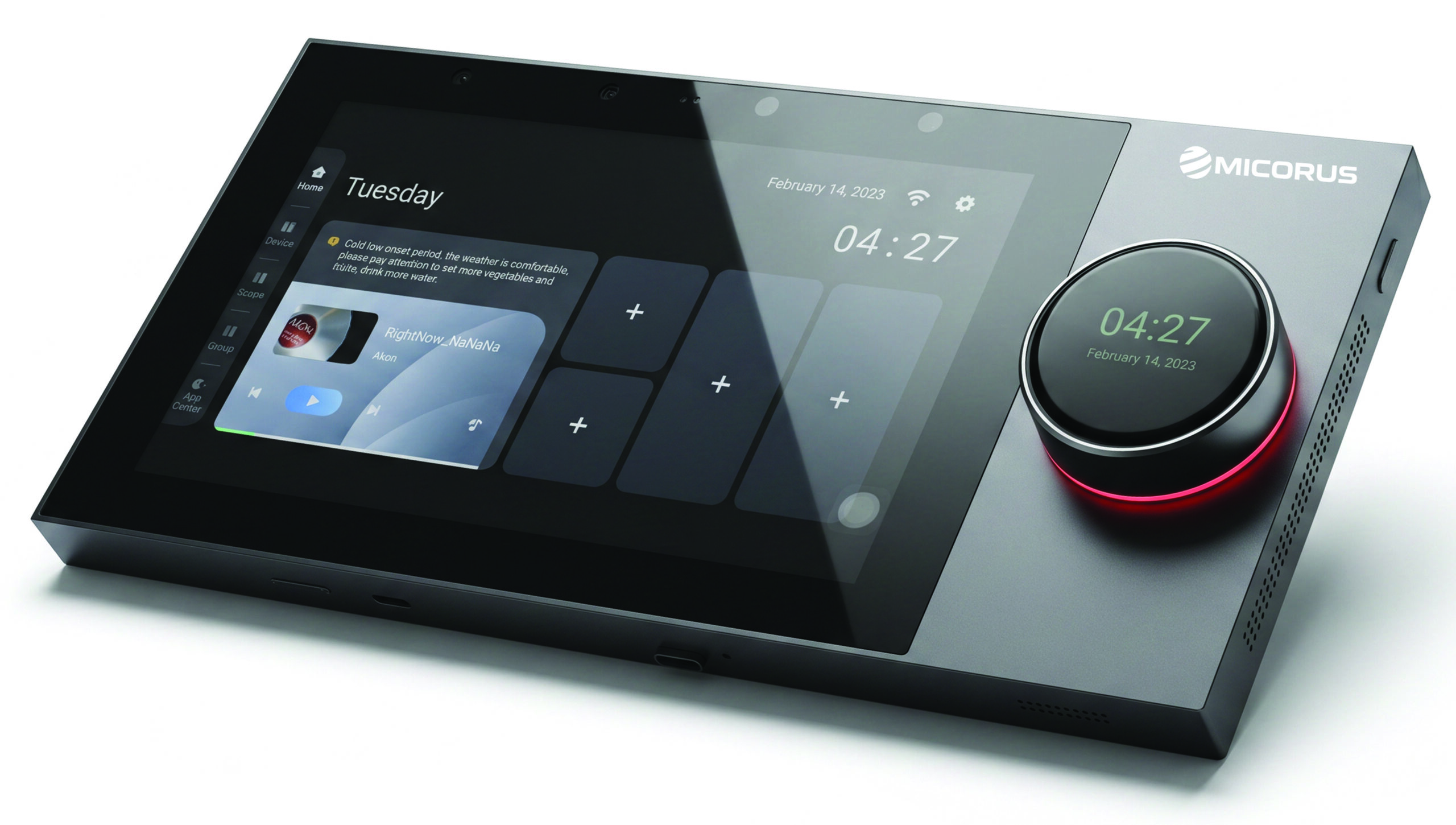

SMART TOUCH AMPLIFIER
MC-ZGAY-225T7I
The MC-ZGAY-225T7I is a 2-channel Bluetooth multi-home audio system equipped with USB and TF card power for two to four speakers in homes or small commercial areas. Users can seek, change tracks and adjust volume directly from the panel.

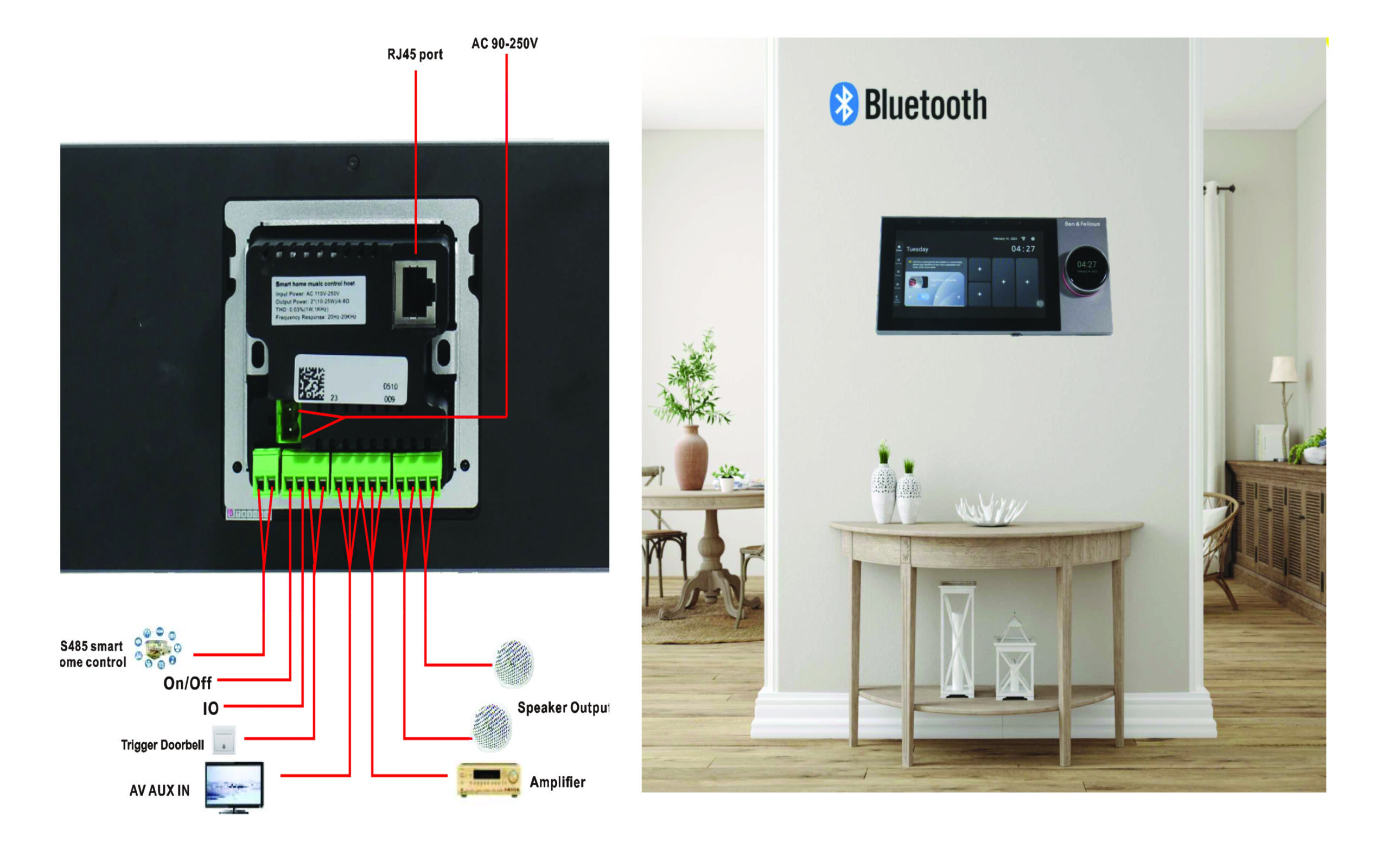

With RJ45 networking, Bluetooth, Tuya Zigbee gateway, RS485 integration and smart-home functions, the unit provides a compact platform for residential audio, light, curtain and air-conditioning control.
Key Features
- 7-inch crystal panel High-transparency crystal panel with high-sensitivity touch screen.
- RJ45 network interface Wired network interface supports stable system integration.
- RS485 integration RS485 communication with third-party automation systems.
- Tuya app support Tuya app provides mobile control of audio and smart functions.
- Timed playback Programmable timed playback for automated room audio.
- Residential applications Suitable for hotels, villas, homes and children’s rooms.
- Bluetooth connection Wireless Bluetooth technology supports convenient playback.
- Tuya Zigbee gateway Tuya Zigbee gateway and relay functions for smart-home control.
- Phoenix connectors Secure Phoenix connectors simplify audio input wiring.
- Smart-home control Controls air conditioning, curtains, light colour, brightness and volume.
- Multi-room audio Supports Spotify, AirPlay, multi-room and internet radio functions.
- Slim wall-mounted form Compact in-wall design for modern residential interiors.
| System Specifications | |
| Model | MC-ZGAY-225T7I |
| Description | 7-inch Android wall amplifier |
| System | Android 8.1, RAM 2G / ROM 8G |
| Power RMS | 2 x 25W |
| Speaker Impedance | 4-8 Ohm |
| Display | 7-inch capacitive touch screen, 1440 x 720 IPS |
| Signal-to-Noise Ratio | >= 98dB |
| Network | Wi-Fi |
| Power Requirements | 110-250VAC |
| Audio Inputs & Outputs | |
| Music Formats | MP3, WAV, WMA, FLAC, APE, ACC, AC3, OGG |
| Video Formats | MPEG, RM/RMVB, WMV, MOV, MKV, VOB, AVI, 3GP, H.264 |
| Sources | USB, TF card, Bluetooth, Wi-Fi, Spotify, AirPlay and internet radio |
| File Name | ||
|---|---|---|
|
