MULTI-ROOM WIFI AUDIO SYSTEM
MC-WAS-AM850-Z4
The MC-WAS-AM850-Z4 is a multi-room system that enables users to enjoy music anywhere in the home. It contains four audio amplifiers for connection to four sets of stereo speakers, with analogue and digital audio outputs in each zone.
Using network streaming and app control, it supports online music services, phone storage, Spotify and other sources, allowing different rooms to play the same music or independent content.
Key Features
- Four-zone amplification Each zone provides 50W x 2 @ 8 Ohm stereo output.
- Multi-room function Play different songs in different rooms or the same song everywhere.

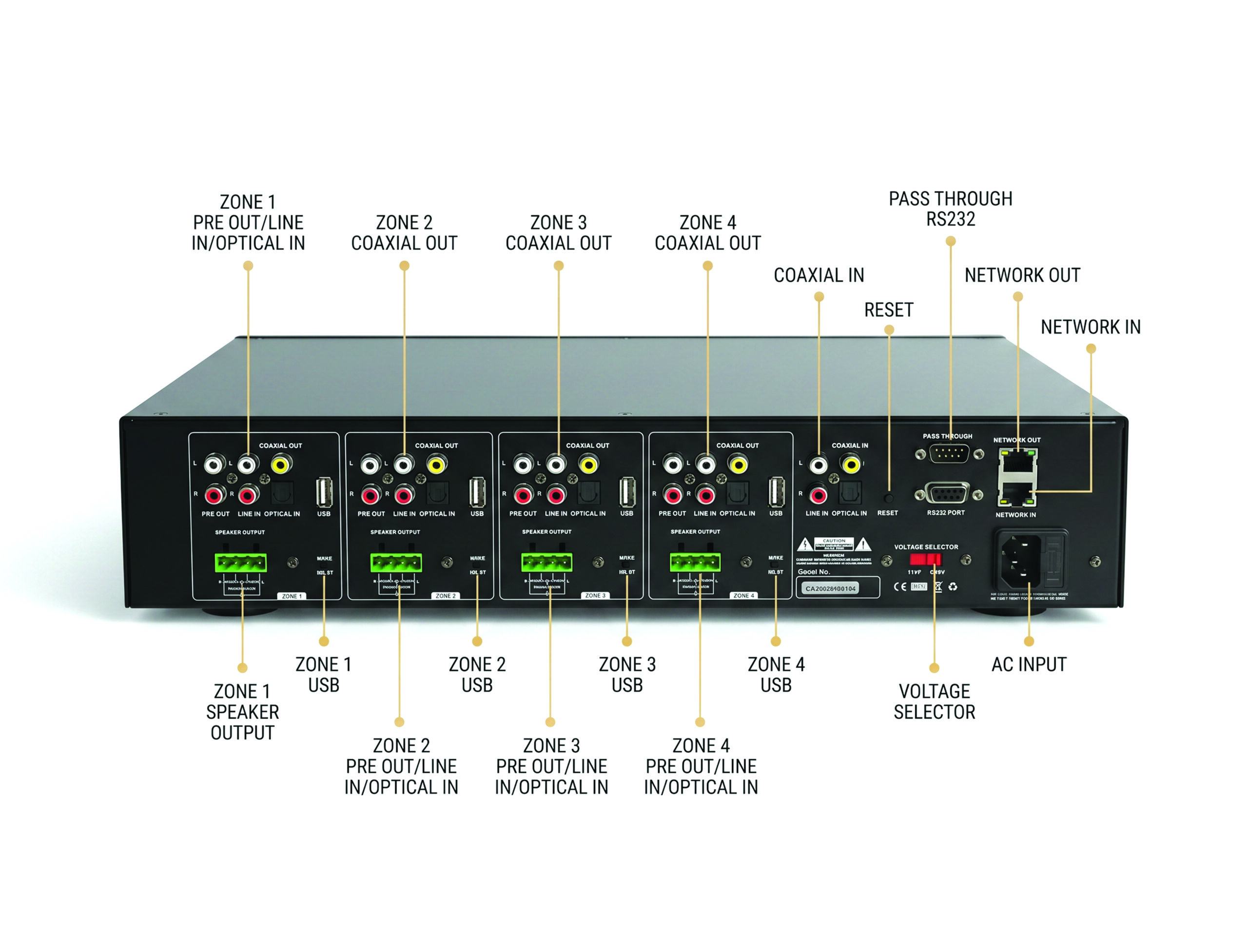

- Rich I/O interface Each zone has separate digital and analogue input/output.
- Streaming protocols Supports Spotify Connect, AirPlay, DLNA, UPnP and Qplay.
- Ethernet loop Ethernet in and out support network sharing.
- App synchronisation Local music sources via master input and app sync.
- Bridge mode output Supports 100W @ 4 Ohm bridge mode per channel.
- Easy network setup Connect to the home network and the system is ready to use.
- Master source input Master input can feed all zones at the same time.
- Online services Supports Spotify, Tidal, Deezer, Qobuz, Napster and internet radio.
- RS232 control Dual-way RS232 control interface for system integration
- Professional rack format 2U rack size for central audio equipment rooms.
| System Specifications | |
| Model | MC-WAS-AM850-Z4 |
| Description | Multi-zone stereo network amplifier |
| Type | Multi-zone stereo amplifier |
| Application | Residential and commercial multi-room audio |
| Power RMS | 8 x 50W, 4-zone stereo |
| Speaker Output | 50W per channel @ 8 Ohm; bridge mode 100W @ 4 Ohm |
| Line In / Pre Out | Max 2V RMS input |
| Optical Input | Max 192kHz / 24bit PCM decoding |
| Dimensions | 2U rack size |
| Audio Inputs & Outputs | |
| Audio Inputs | Analogue and digital inputs per zone |
| Audio Outputs | Pre-out, line out, coaxial and speaker outputs |
| Streaming Protocols | Spotify Connect, AirPlay, DLNA, UPnP and Qplay |
| Control & System Features | |
| Network | Ethernet In, Ethernet Out and network sharing |
| Control Interface | Dual-way RS232 and app-based source control |
| Environment & Physical | |
| Online Services | Spotify, Tidal, Deezer, Qobuz, Napster, Pandora, Amazon Music and internet radio |
| Mounting | 2U rack installation |
| Local Sources | Master input source and app sync |
| Power Input | AC input with voltage selector |
| Application | Residential and commercial multi-room audio |
| File Name | ||
|---|---|---|
|
MC-WAS-AM850-Z4_brochure
|
||
|
MC-WAS-AM850-Z4_Datasheet
|
||
