MULTI-ROOM WIFI AUDIO SYSTEM
MC-WAS-AM 460

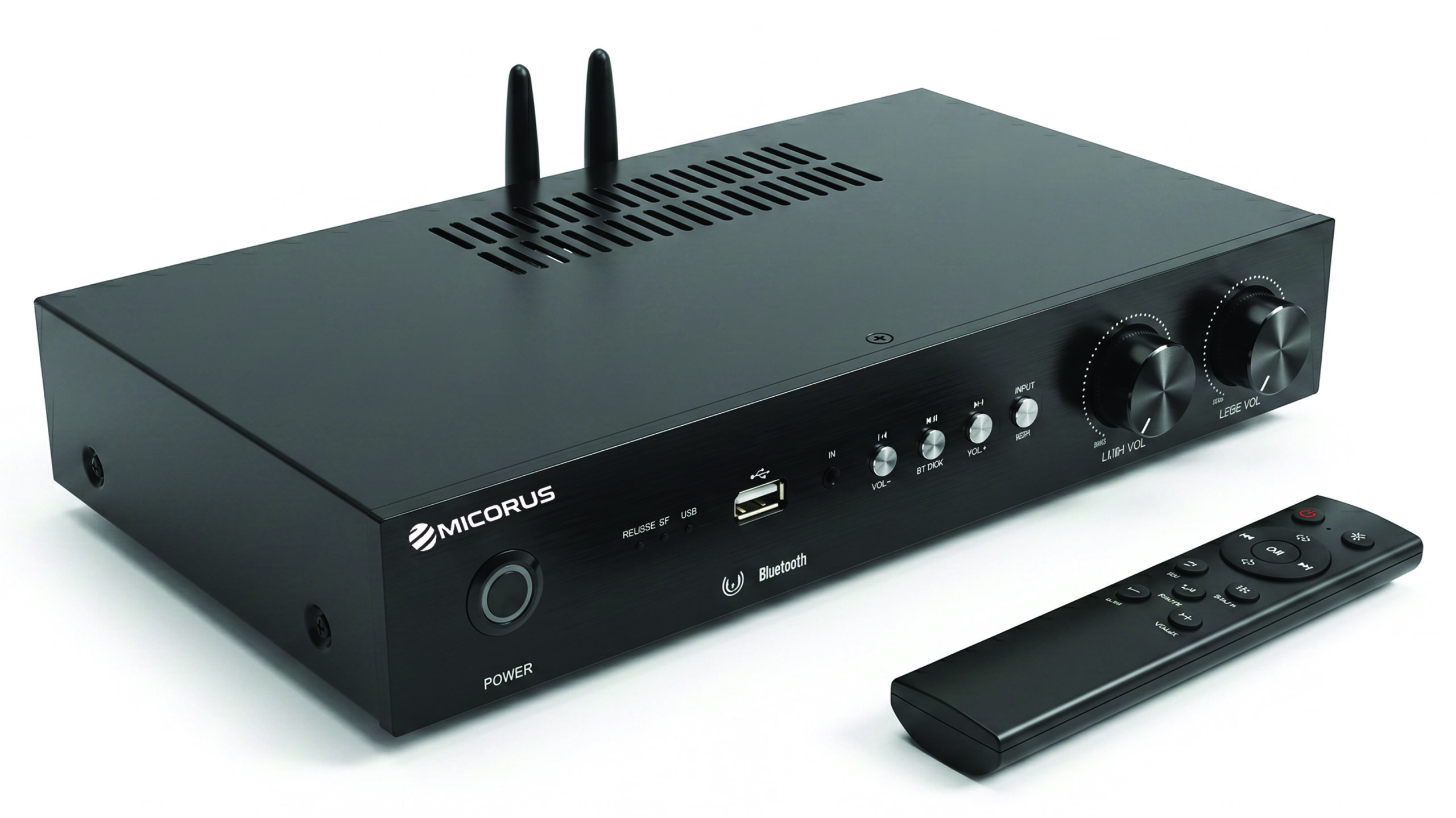

The MC-WAS-AM 460 Series is a compact 4 x 60W amplifier with Wi-Fi, Bluetooth, USB and AUX inputs. It is designed to turn traditional passive speakers into multi-functional wireless speakers.
With online music services, internet radio, AirPlay, DLNA and app management, it provides flexible wireless audio distribution for homes, offices, retail spaces and commercial venues.
Key Features
- Wireless streaming Allows music streaming via Wi-Fi or Bluetooth.
- USB and AUX input USB reader and AUX input support additional audio sources.
- WiiM app control Convenient music management by WiiM app.

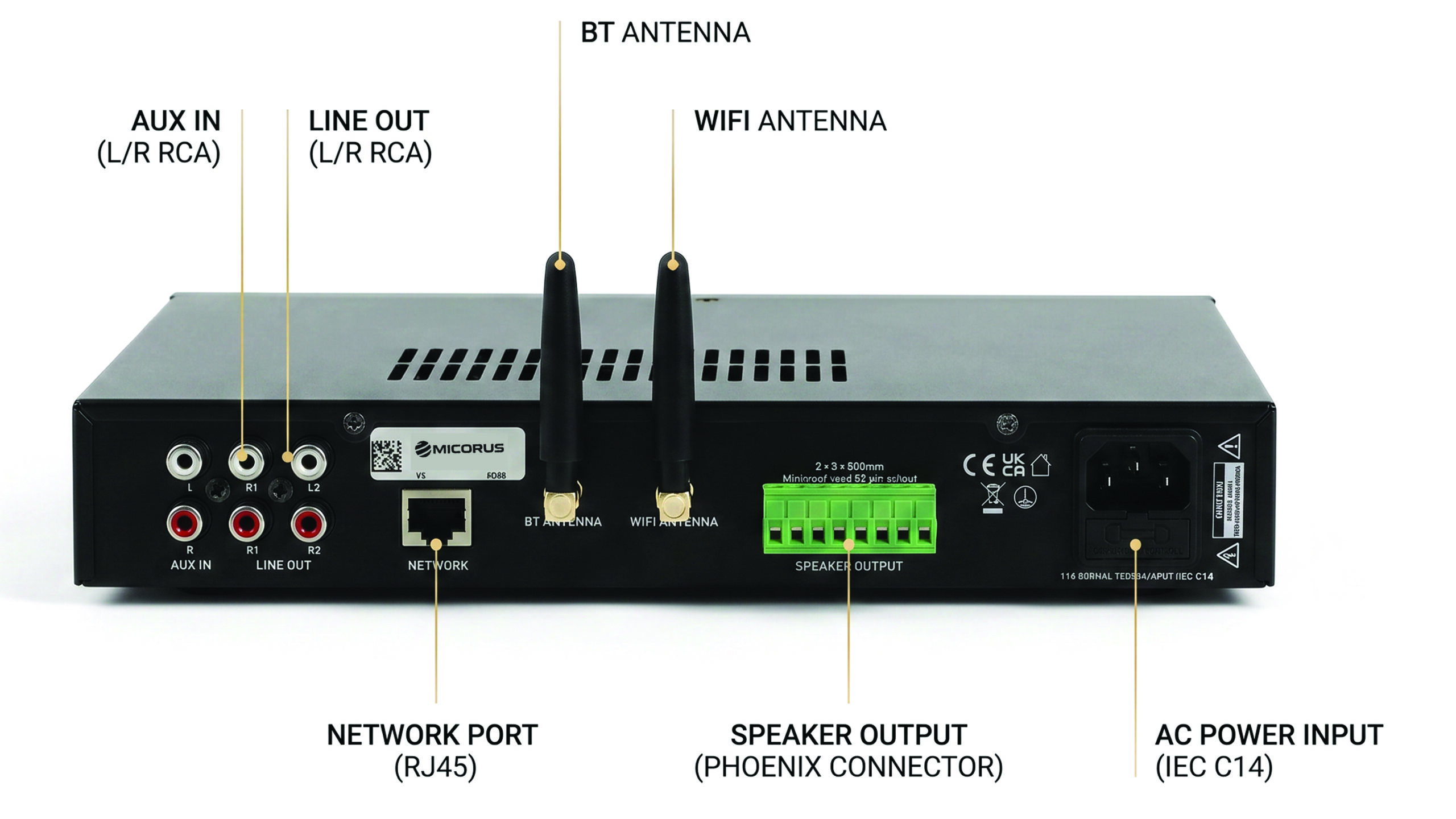

- Network connectivity RJ45 network port supports wired network operation.
- High-resolution decoding 24bit / 192kHz decoding for high-quality audio playback.
- Commercial audio use Suitable for retail, offices and venues.
- Four-channel output 4 x 60W stereo speaker outputs for distributed audio.
- Online music Supports online music, internet radio, AirPlay and DLNA.
- Optional rack ears Optional 1U rack mount ears for professional installation
- Speaker terminal block Phoenix speaker connector simplifies installation wiring.
- Compact chassis Slim amplifier body fits equipment shelves and cabinets.
- Remote operation Front-panel control and remote support everyday operation.
| System Specifications | |
| Model | MC-WAS-AM 460 |
| Description | 4-channel smart amplifier |
| Type | 4-channel smart amplifier |
| Application | Commercial audio, retail, offices and venues |
| Output Power | 60W x 4 @ 4 Ohm; 30W x 4 @ 8 Ohm |
| Input Voltage | 100-240VAC, 50/60Hz |
| Frequency Response | 20Hz - 20kHz |
| Signal-to-Noise Ratio | 95dB |
| Decoding | 24bit / 192kHz |
| Audio Inputs & Outputs | |
| Audio Inputs | Wi-Fi, Bluetooth, USB and AUX |
| Audio Outputs | 4-channel speaker outputs |
| Music Services | Spotify, QQ Music, Napster, iHeartRadio, Tidal, Qobuz and TuneIn |
| Control & System Features | |
| Control Options | WiiM app management and front-panel controls |
| Installation Features | Network port, speaker Phoenix connector and optional 1U rack ears |
| Environment & Physical | |
| Power Requirements | AC90-250V, 50/60Hz |
| Material / Finish | High-grade ABS, elegant white finish |
| Dimensions | 185 x 112 x 45mm |
| Net Weight | 0.6kg |
| THD+N | 0.05% |
| File Name | ||
|---|---|---|
|
MC-WAS-AM 460_brochure
|
||
|
MC-WAS-AM_460_Datasheet
|
||
