CHANNEL UHF WIRELESS MICROPHONE
MC-WM-2005HD

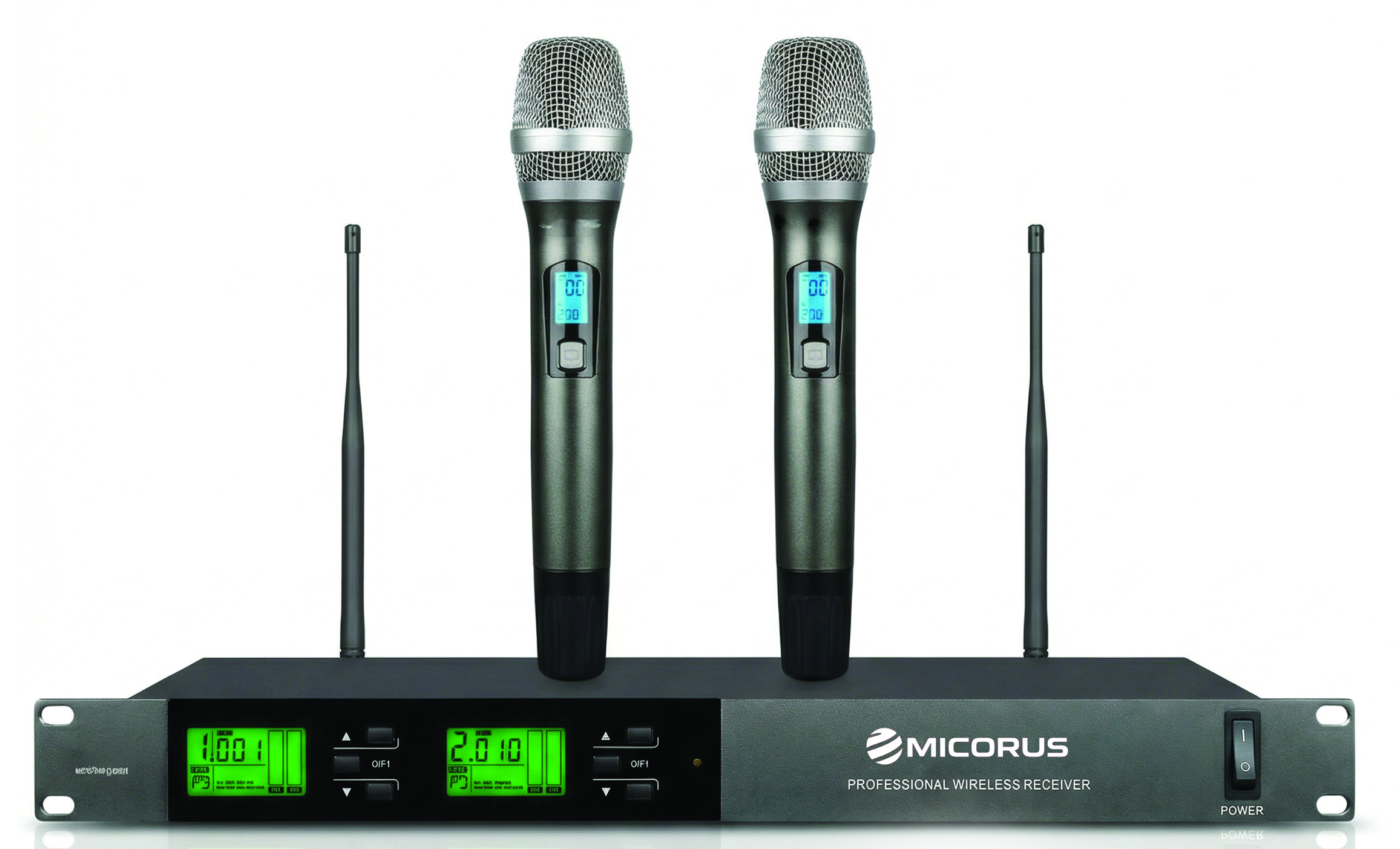

The MC-WM-2005HD Series is a high-performance dual-channel UHF wireless microphone system designed to deliver crystal-clear audio in professional environments such as stages, auditoriums and event venues.
The system operates on the UHF 499-900MHz band and provides long-range operation, digital encryption, digital ID identification and built-in feedback suppression for reliable voice reinforcement.
Key Features
- Stable UHF signal UHF wireless transmission is less likely to suffer interference than VHF.
- Auto pairing Automatic pairing helps simplify setup and channel management.
- 100m wireless range Ultra-long operating range supports large stages and auditoriums.
- Digital encryption Unique encryption technology helps protect against eavesdropping.

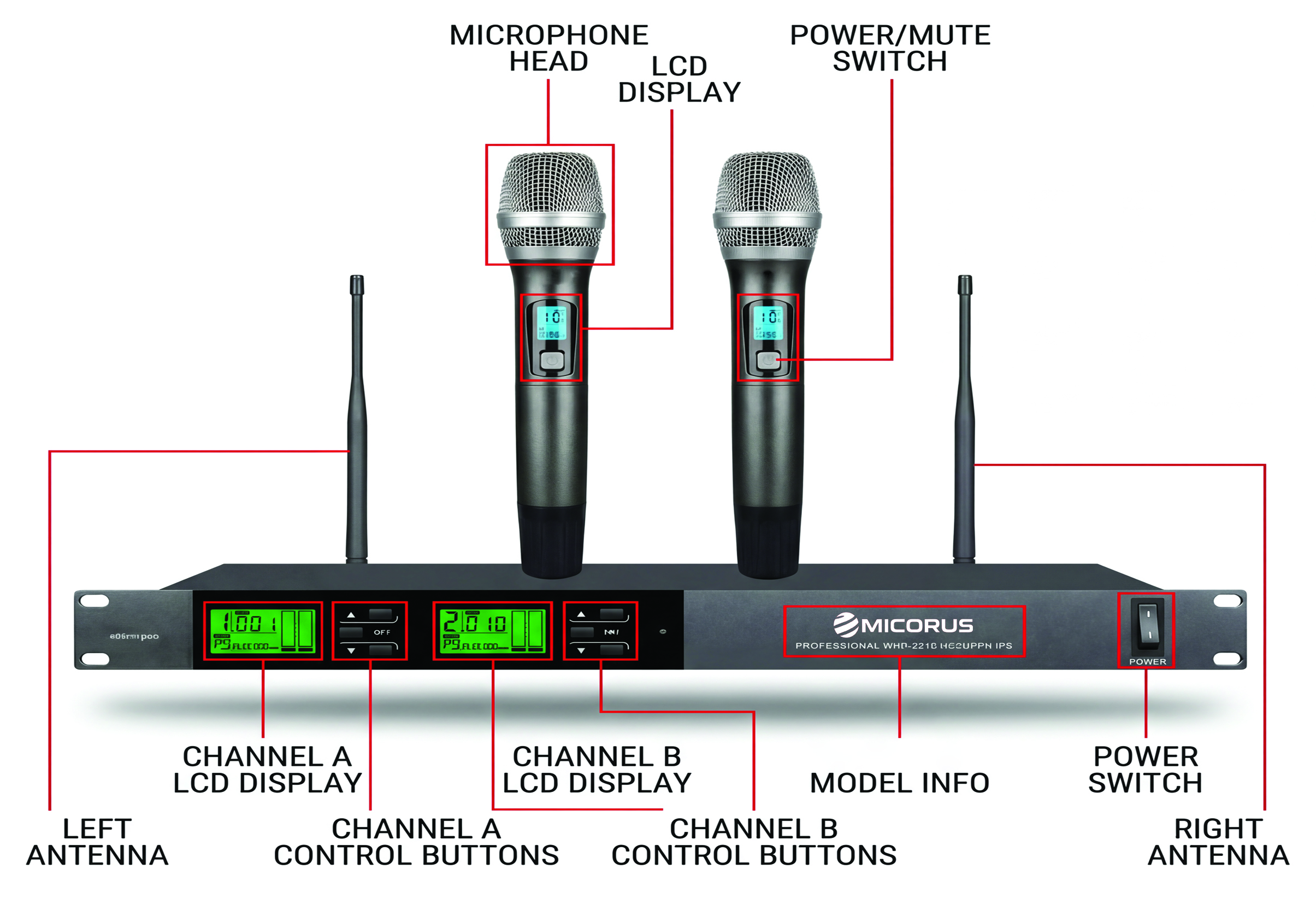

- Handheld transmitters Dual handheld microphones suit presenters, singers and performers.
- Professional receiver Rack-mountable receiver with independent channel controls.
- Up to 200 frequencies Multiple systems can operate simultaneously with reduced interference.
- High-end LCD LCD displays provide clear channel and system monitoring.
- Digital ID protection Digital ID identification helps prevent interference and cross-talk.
- Feedback suppressor Built-in suppressor supports one-key howling elimination.
- Cardioid pickup Dynamic cardioid capsule reduces background noise.
- Event deployment Suitable for stage, conference, education and entertainment venues.
System Specifications
| Model | MC-WM-2005HD |
| Description | Dual-channel UHF handheld wireless system |
| Receiver Oscillation Mode | PLL frequency synthesis |
| Frequency Range | UHF 499MHz - 900MHz |
| Modulation Mode | FM |
| Frequency Stability | +/-0.001% |
| Receiver Sensitivity | 1.2uV @ S/N=12dB |
| Power Supply | DC 12V |
| Audio Output | Independent 0-2V / Hybrid 0-2V |
Audio Inputs & Outputs
| SNR | >60dB |
| Distortion | <0.5% @ 1kHz |
| Microphone Response | 60Hz - 17kHz; sensitivity -42 +/- 2dB @ 1kHz |
| Control & System Features | |
| Transmitter Data | DC 3V (1.5V AA x 2), 110mA consumption |
| Microphone Characteristics | Dynamic capsule, cardioid polarity, >=100dB dynamic range |
| Environment & Physical | |
| Operating Range | Up to 100m |
| Receiver Format | Rack-mount receiver with dual handheld microphones |
| Carrier Frequency | UHF 499MHz - 937MHz |
| Max Frequency Offset | +/-70kHz |
| Application | Stage, broadcast, education and live events |
| File Name | ||
|---|---|---|
|
MC-WM-2005HD_brochure
|
||
|
MC-WM-2005HD_Datasheet
|
||
