DUAL-CHANNEL UHF WIRELESS MICROPHONE
MC-WM-1008D
The MC-WM-1008D dual-channel handheld wireless system features efficient RF performance, a diversified frequency range and a high S/N ratio. It is suitable for KTV, education, seminars and live performance applications.
Operating in the UHF 600-900MHz spectrum, the system reduces the risk of signal drops and interference from household electronics while providing plug-and-play operation for professional sound reinforcement.
Key Features
- Efficient RF performance Advanced RF filtering isolates the intended signal in crowded environments.
- Rugged ergonomics Handheld microphones are designed for comfortable long-use operation.
- UHF operation UHF operation helps deliver a more stable signal than VHF systems.
- Plug-and-play setup Simple receiver and microphone pairing for quick installation.
- Live performance Suitable for vocalists and presenters requiring mobility.
- Compact receiver Receiver size supports integration into sound racks.

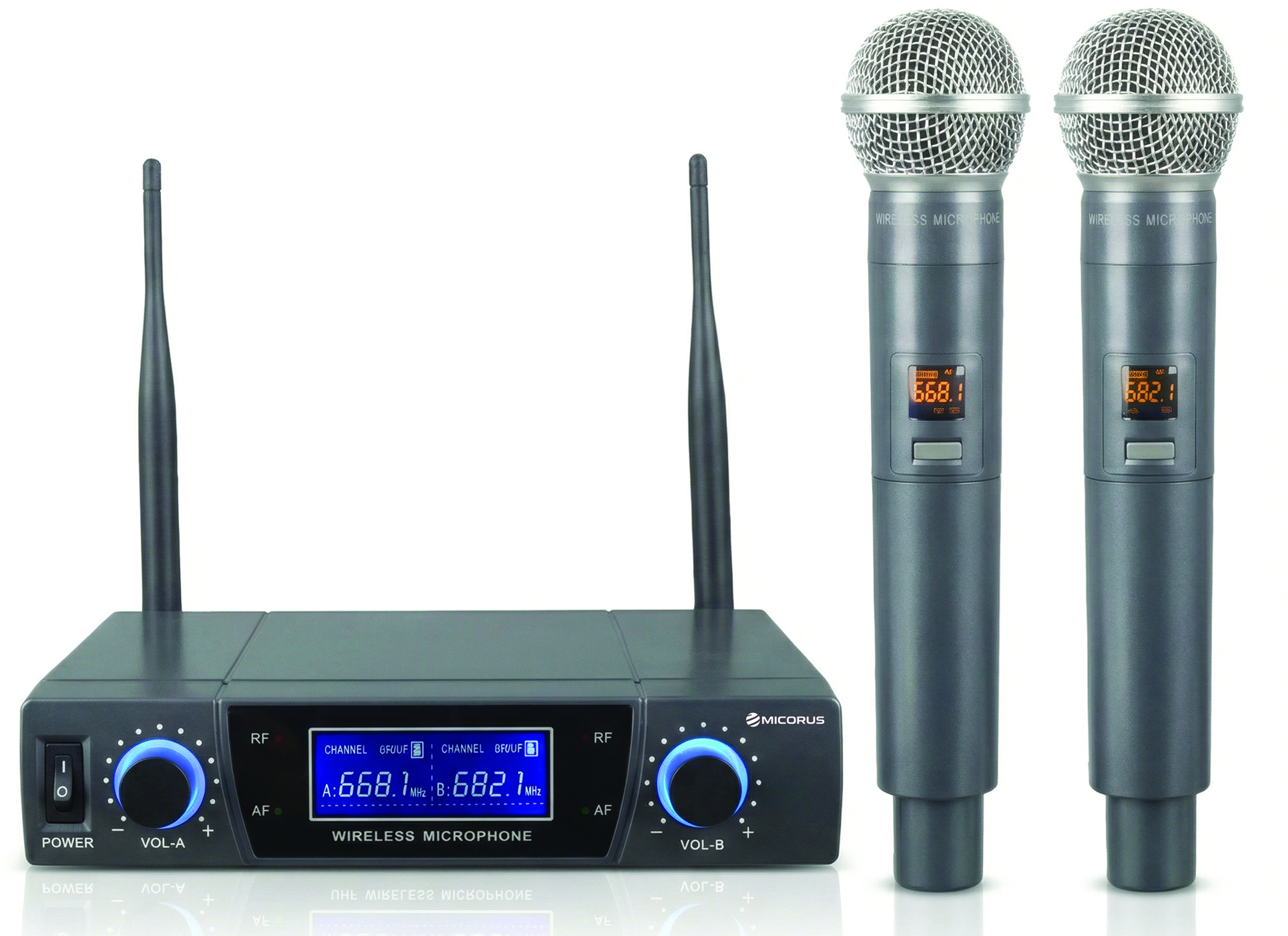

- Dual handheld microphones Two handheld transmitters support duet, interview and shared presentation use.
- LCD monitoring Integrated displays help monitor battery and channel status.
- Wide frequency range 600-900MHz carrier range provides flexible deployment.
- Education use Clear voice projection for lecture halls and training rooms.
- Corporate events Reliable reinforcement for seminars and conferences.
- Independent volume Separate volume control for each channel.
| System Specifications | |
| Model | MC-WM-1008D |
| Description | Dual-channel handheld UHF wireless system |
| Channel | Dual channel, 100 channels optional |
| Carrier Frequency | UHF 600-900MHz |
| Modulation Mode | UHF |
| Frequency Steadying | +/-0.005% |
| Maximum Deviation | +/-20kHz |
| Cover Range | 80m |
| Application | KTV, education, live performance and events |
| Audio Inputs & Outputs | |
| Audio Frequency Response | 40Hz - 20kHz |
| S/N Ratio | >80dB |
| Audio Dynamic Range | >80dB; THD <0.2% |
| Control & System Features | |

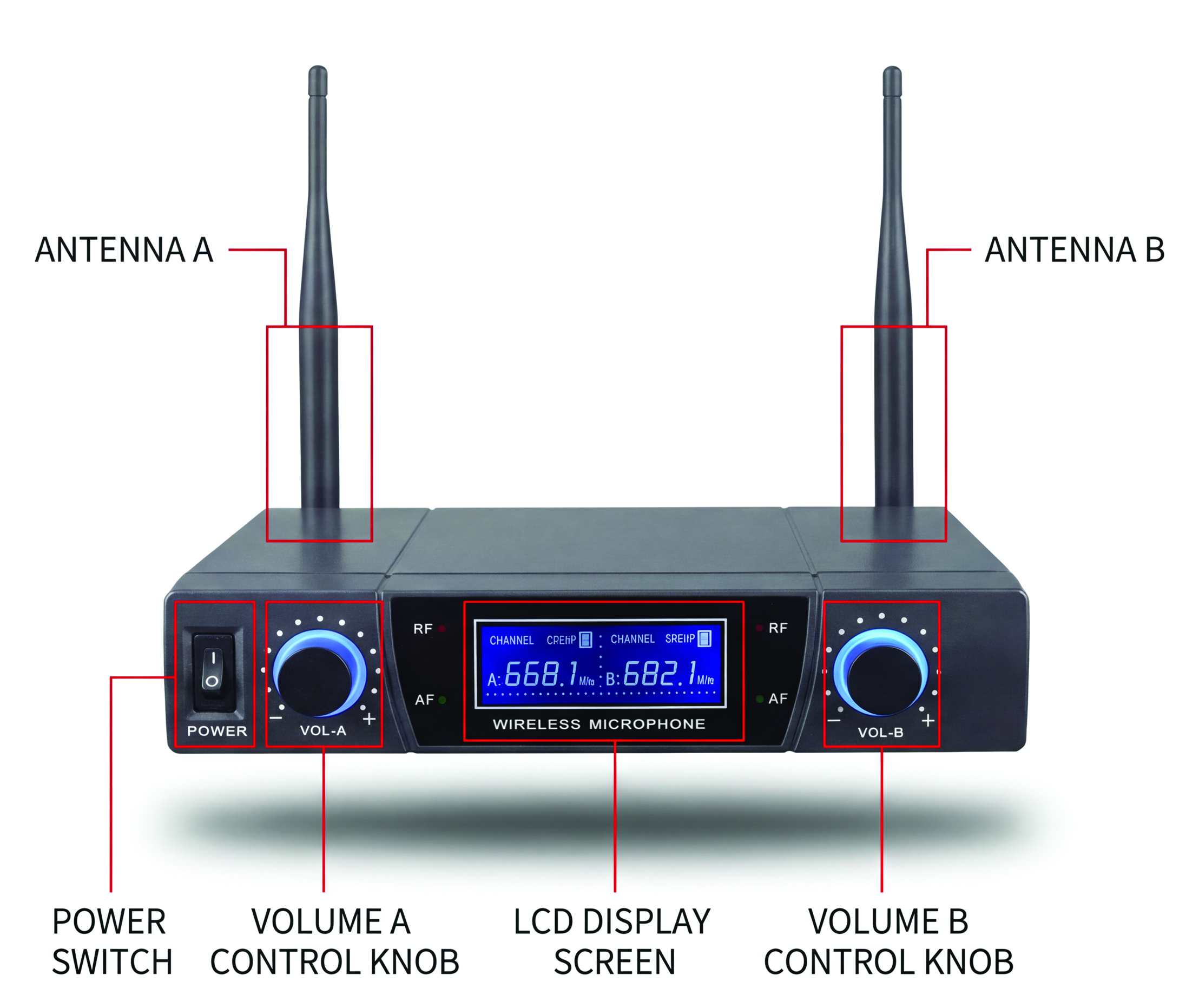

| Receiver Controls | Power switch, LCD display and independent volume A/B controls |
| RF Interface | Antenna A and B reception with RF and AF indication |
| Environment & Physical | |
| Operating Temperature | -10°C to 50°C |
| Receiver Size | 21 x 18 x 4.4cm |
| Microphone Type | Handheld wireless transmitter |
| Mounting | Desktop or equipment rack integration |
| Colour | Black |
| File Name | ||
|---|---|---|
|
