PROFESSIONAL DYNAMIC MICROPHONE

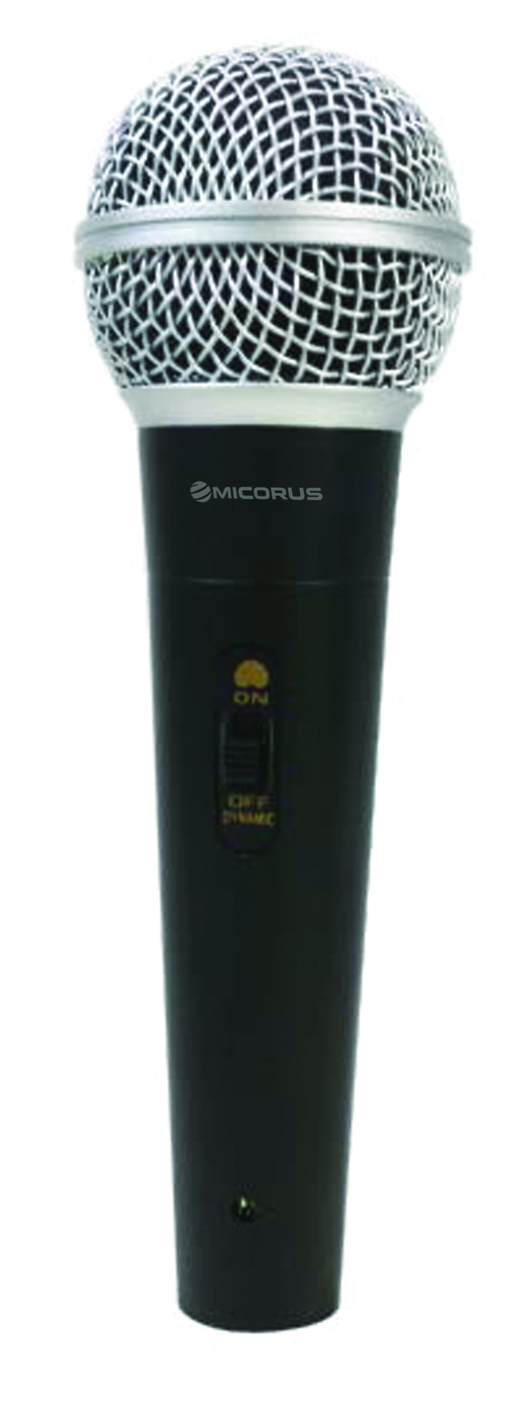

MC-DM1003HS
The MC-DM1003HS is a professional dynamic microphone engineered for high-quality live performances, featuring a unique voice coil with integrated echo suppression technology and a cardioid polar pattern.
It provides focused sound pickup while reducing ambient noise and feedback, making it suitable for clear vocal delivery across stage, broadcast and instrument miking applications.
Key Features
- Advanced voice coil Unique voice coil with advanced echo suppression technology.
- Dynamic element High-quality dynamic capsule for reliable sound capture.
- Wide frequency response 50Hz to 16kHz response supports clear vocal reproduction.
- Balanced output 3-pin XLR balanced connector for professional audio systems
- Matte black finish Professional finish suitable for stage and broadcast environments.
- No phantom required Dynamic capsule operates without phantom power.
- Live performance design Optimised for singers, performers and professional stages.
- Cardioid pattern Focused pickup minimises background noise and feedback.
- Lightweight handling 0.6kg professional construction provides comfortable use.
- Rugged housing Die-cast metal alloy housing improves durability.
- Shock mounting Advanced shock-mounting helps reduce handling noise.
- Multi-use application Suitable for stage vocals, broadcast and instrument miking.
| System Specifications | |
| Model | MC-DM1003HS |
| Description | Professional dynamic cardioid microphone |
| Type | Dynamic microphone |
| Application | Stage vocals, broadcast, instrument miking |
| Frequency Response | 50Hz - 16kHz |
| Polar Pattern | Cardioid |
| Impedance | 600 Ohms balanced |
| Sensitivity | -46dB at 1kHz, 0dB = 1V/Pa |
| Power Requirement | No phantom power required |
| Audio Inputs & Outputs | |
| Connector | 3-pin XLR balanced |
| Capsule Type | Dynamic capsule |
| Output Character | Balanced professional microphone output |
| Control & System Features | |
| Build Features | Rugged construction and advanced shock-mounting |
| Noise Control | Cardioid pickup and echo suppression for reduced feedback |
| Environment & Physical | |
| Housing Material | Die-cast metal alloy |
| Colour | Matte black |
| Dimensions | Diameter 45mm x 185mm length |
| Product Weight | 0.6kg |
| Application | Stage, broadcast and instrument microphones |
| File Name | ||
|---|---|---|
|
MC-DM1003HS_brochure
|
||
|
MC-DM1003HS_Datasheet
|
||
