SMART TOUCH AMPLIFIER
MC-STAT-825Z2-AT
The MC-STAT-825Z2-AT is a high-performance network audio control hub designed for professional home and business installations. Its 10-inch multi-touch display, powerful audio output and integrated connectivity make it suitable for multi-room sound applications.
The unit combines Bluetooth, Wi-Fi, USB, TF card and AUX playback with RS485, Zigbee gateway and Tuya support, providing a flexible platform for room audio, smart automation and centralised touch control.
Key Features

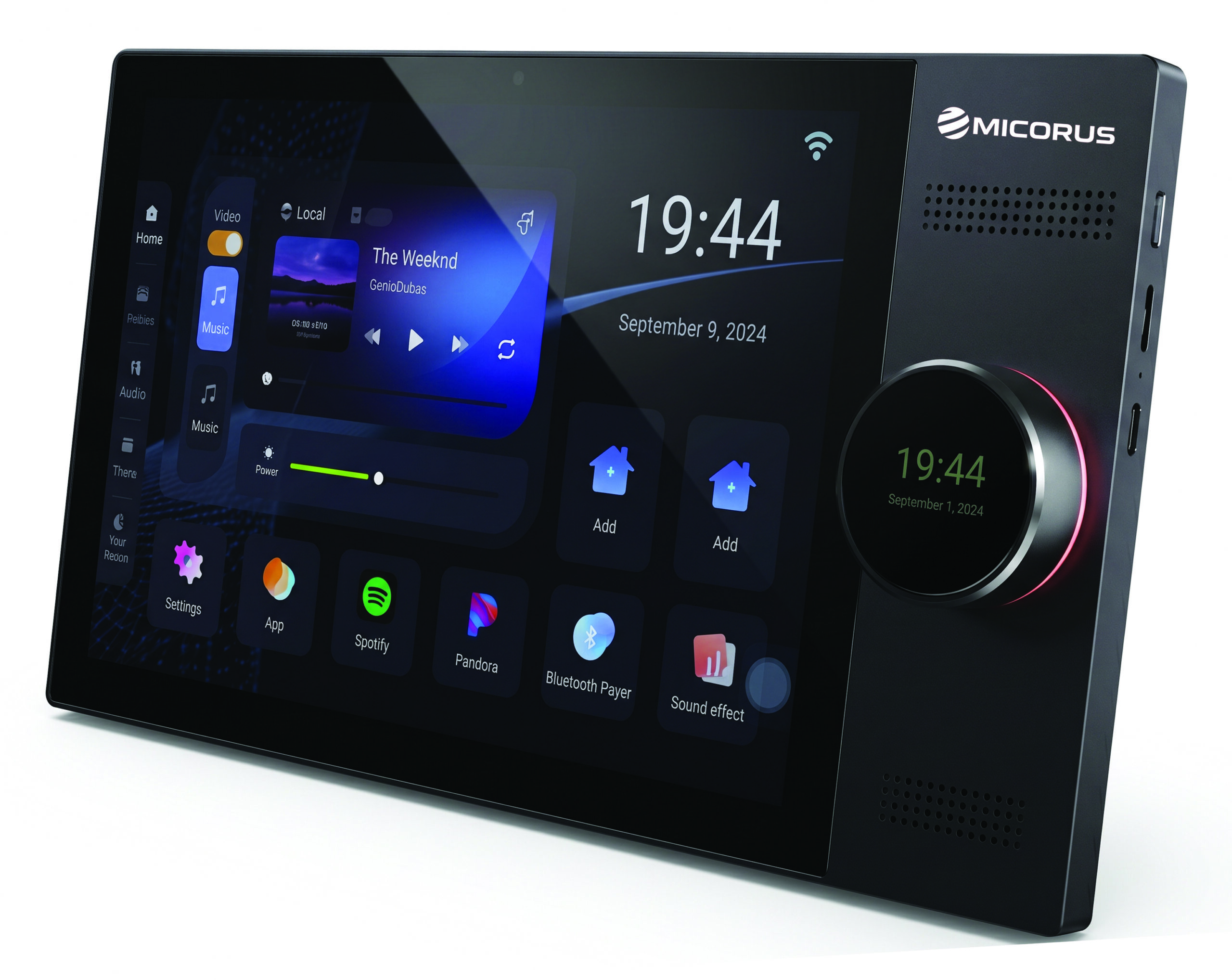

- 10-inch control display High-definition multi-touch screen with 1280 x 800 resolution.
- Bluetooth and Wi-Fi Wireless connectivity supports flexible installation and daily playback.
- High-power output 8 x 25W speaker output for distributed speaker installations.
- RS485 interface External RS485 control interface for home automation systems.
- Compact installation Designed for easy in-wall installation in modern interiors.
- Professional applications Suitable for homes, offices, villas and commercial audio spaces.
- Powerful processor Quad-core Cortex 1.5GHz processor supports smooth system operation.
- Multi-zone audio Supports zone-based audio control with adjustable volume.
- Local media playback Music playback from Bluetooth, TF card, USB and AUX sources.
- Zigbee and Tuya Supports Zigbee gateway and Tuya smart-home integration.

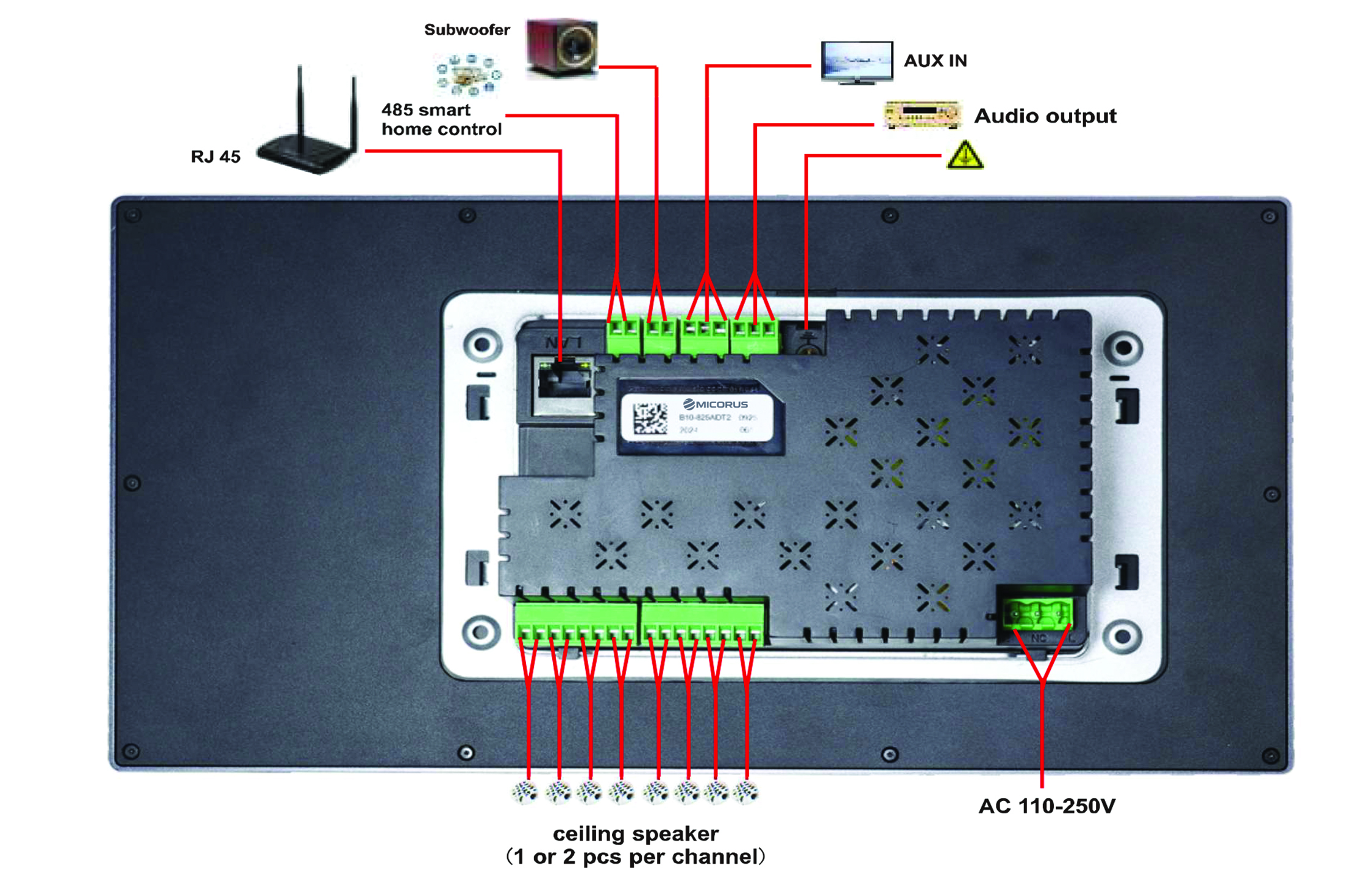

- Subwoofer interface Rear connection layout includes subwoofer and audio output functions.
- Elegant control hub Combines room audio, source selection and smart control in one panel.
| System Specifications | |
| Model | MC-STAT-825Z2-AT |
| Description | 10-inch Bluetooth wall amplifier |
| CPU | Quad-core Cortex 1.5GHz |
| Memory | 4GB RAM / 32GB ROM |
| Speaker Output | 8 x 25W |
| Power Input | AC100-240V, 50/60Hz |
| Frequency Response | 20Hz - 20kHz |
| Signal-to-Noise Ratio | >= 98dB |
| Operating Temperature | 0°C to 40°C |
| Audio Inputs & Outputs | |
| Audio Sources | Bluetooth, TF card, USB and AUX |
| Audio Outputs | Speaker output, audio output and subwoofer interface |
| Zone Control | Dual-zone audio control with adjustable volume |
| Control & System Features | |
| Control Interface | RS485 interface for home automation |
| Smart Integration | Zigbee gateway and Tuya smart-home support |
| Environment & Physical | |
| Operation Humidity | 5% - 90% RH non-condensing |
| Mounting | In-wall installation |
| Dimensions | 178 x 105 x 70mm |
| Net Weight | 0.94kg |
| Application | Professional residential and business audio systems |
