COAXIAL SPLITTER
MC-DSP-02S
Professional 2-Way SAT-IF and MATV Coaxial Splitter

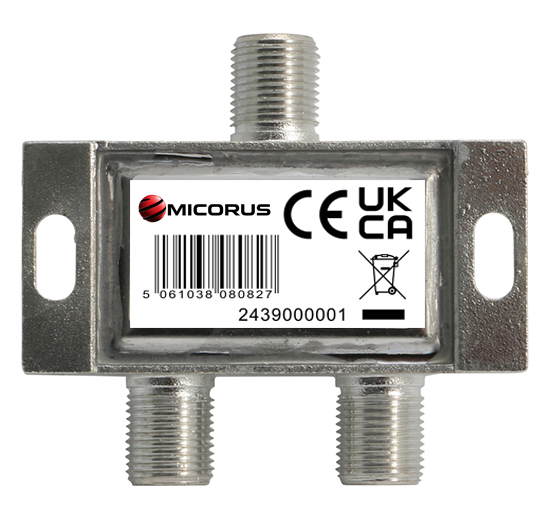

The MC-DSP-02S is a professional 2-way indoor coaxial splitter engineered for SAT-IF and MATV distribution networks. It is suitable for DVB-S/S2 satellite systems, DTT/COFDM terrestrial TV, and DAB signal distribution applications.
The splitter operates across a wide 5 MHz to 2.4 GHz frequency range and provides directionally coupled DC/AC power pass from all RF outputs to the input through diode protection, supporting practical installation in powered coaxial distribution systems.
With a zinc die-cast housing, tin plating and soldered back plate construction, the unit provides strong mechanical stability and high shielding performance for reliable RF signal distribution in residential and commercial environments.
Key Features
- SAT-IF & MATV Distribution Designed for satellite IF, terrestrial TV and DAB signal distribution networks.
- Directional Power Pass DC/AC pass-through up to 24V / 0.5A from all RF outputs to the input via diodes.
- F-Female Connectors Equipped with F-female connectors for standard coaxial RF installation.
- Wideband 5–2400 MHz Operation Supports a broad frequency range from 5 MHz up to 2.4 GHz for mixed RF applications.
- High Shielding Design Zinc die-cast housing with tin plating and soldered back plate for 110 dB shielding performance.
- Compact Indoor Installation Compact body size supports clean installation inside cabinets and distribution points.
| GENERAL INFORMATION | |
| Model | MC-DSP-02S |
| Splitter Type | 2-way |
| Item Reference | 349822 |
| EAN Code | 5061038080827 |
| Connector Type | F-female connectors |
| Application | SAT-IF, MATV, DTT/COFDM and DAB distribution |
| FREQUENCY & POWER PASS | |
| Frequency Range | 5 MHz to 2.4 GHz |
| Power Pass | Max. 24V / 500mA |
| Power Pass Direction | Directionally coupled by diodes from all outputs to input |
| INSERTION LOSS IN-OUT | |
| 5-40 MHz | <=4.5 dB |
| 40-1000 MHz | <=4.8 dB |
| 1000-1750 MHz | <=5.5 dB |
| 1750-2150 MHz | <=6 dB |
| 2150-2400 MHz | <=6.5 dB |
| RETURN LOSS IN-OUT | |
| 5-40 MHz | >=10.5 dB |
| 40-1000 MHz | >=11 dB |
| 1000-1750 MHz | >=10 dB |
| 1750-2150 MHz | >=10 dB |
| 2150-2400 MHz | >=10 dB |
| Return Loss Grade | Grade 3 |
| ISOLATION OUT-OUT | |
| 5-40 MHz | >=18 dB |
| 40-1000 MHz | >=21 dB |
| 1000-1750 MHz | >=21 dB |
| 1750-2150 MHz | >=20 dB |
| 2150-2400 MHz | >=20 dB |
| DC Support on Trunk Line SAT / TER | On all 4 polarities VL/VH/HL/HH; TER no DC pass |
| Trunk Max. Current Pass per Line | 2A |
| DC Injection Max. Current | 3A |
| MECHANICAL & ENVIRONMENT | |
| Housing | Zinc die-cast housing with tin plating and soldered back plate |
| Shielding | 110 dB |
| Operating Temperature | -30°C to +60°C |
| Size (W x H x D) | 85 x 53 x 19 mm |
| Net Weight | 35 g |
| File Name | ||
|---|---|---|
|
MC-DSP-02S_Datasheet
|
||
