HDMI to IP Streamer Card
4 CHANNEL HD ENCODER FOR IPTV SYSTEM

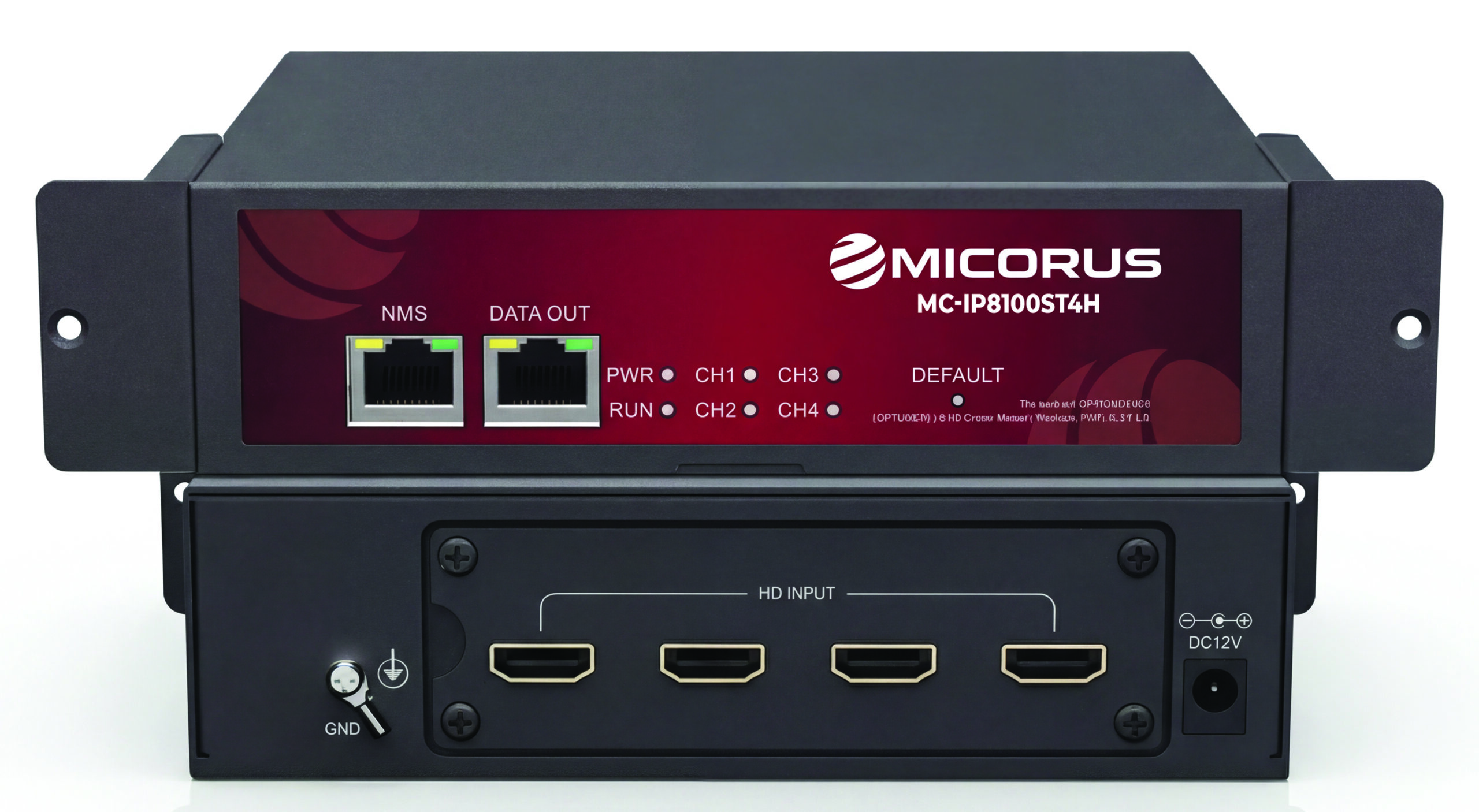

The MC-IP8100ST4HD is a compact and efficient streaming device designed to receive up to 4 HD input signals and encode them into H.264 compressed streams for high-quality video distribution.
De eerste indruk van scori pro wordt snel bevestigd door de diepte en kwaliteit van het volledige spelaanbod. Mobiel-exclusieve bonussen belonen spelers die het platform vooral via smartphone gebruiken. Een mini-sectie is gewijd aan klassieke casinospellen zoals Sic Bo, Craps en Pai Gow Poker. Speelsessies kunnen naadloos tussen desktop en smartphone worden voortgezet. Persoonlijke spellijsten en favorieten vergemakkelijken snelle toegang tot voorkeurstitels. Tools voor verantwoord spelen omvatten stortingslimieten, realitychecks en zelfuitsluiting. Spelers kunnen zich aanmelden voor regelmatige nieuwsbrieven met actuele acties. Meertalige ondersteuning zorgt voor een internationaal toegankelijke speelervaring. Live roulettetafels bieden verschillende spelvarianten, van klassiek Europees tot Lightning Roulette. De positieve respons vanuit de community bevestigt het beeld van een rondom geslaagd platform.
The unit features an intuitive web-based management interface, enabling users to easily configure encoding parameters such as resolution, bitrate, and streaming settings according to system requirements.
Features
- Supports H.264 video encoding together with MPEG and AAC audio encoding formats.
- Delivers IP streaming output in up to 4 SPTS via UDP or RTP protocols.
- Provides adjustable bitrate control for optimizing video quality and bandwidth utilization.
- Features a graphical user interface for simple and convenient configuration.

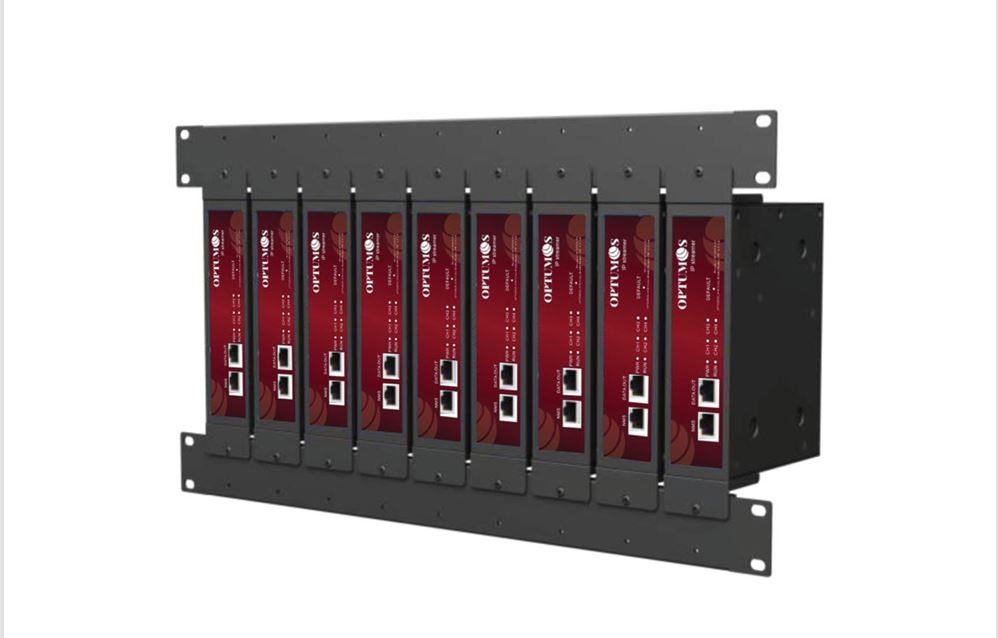

- Designed for flexible installation with both rack-mount and wall-mount support.
| IP INPUT AND OUTPUT | ||
|---|---|---|
|
HD INPUT
|
HD 1.4*4 |
|
|
VIDEO |
|
|
|
Encoding |
H.264 |
|
|
Input Resolution |
1920*1080_60P /_50P
1920*1080_60i/_50i
1280*720_60P/_50P |
|
|
Bitrate |
20 19000 Kbps |
|
|
AUDIO |
|
|
|
Encoding |
MPEG 1 Layer II, AAC |
|
|
IP OUTPUT |
|
|
|
Output Connector |
1* 1000 Mbps port |
|
|
Transport Protocol |
UDP, RTP |
|
|
Output Transport Stream |
SPTS*4 |
|
|
Broadcasting Mode |
Unicast and Multicast |
|
|
|
|
|
|
GENERAL |
|
|
|
Input Voltage |
90 -264VAC, DC 12V 2A |
|
|
Power Consumption |
Less than W |
|
|
Dimension (WxHxD) |
205*93*135mm |
|
|
Net Weight |
0.9KG |
|
|
Language |
English |
|
|
CLOUD Service |
Yes |
|
| File Name | ||
|---|---|---|
|
MC-ip8100st4HD
|
||
HDMI TO IP STREAMER Card

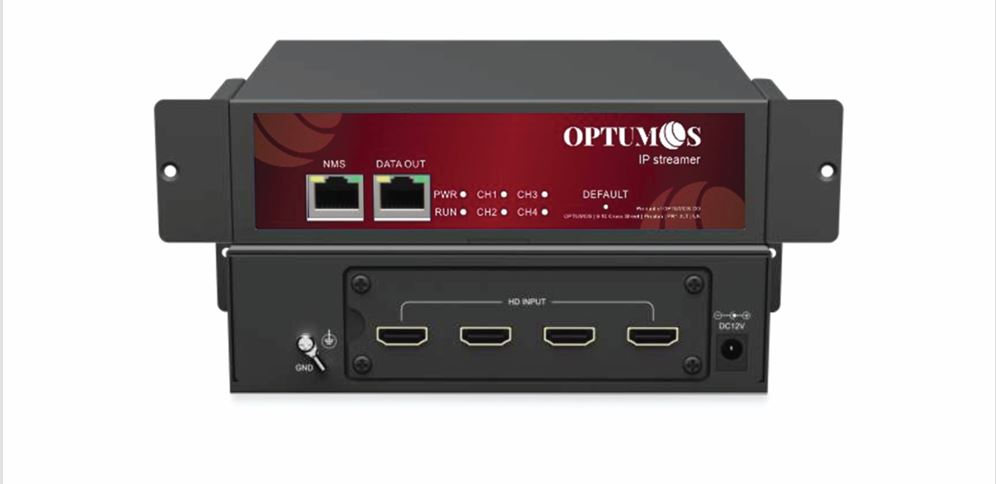

The OP-IP7100SC-4HD is a small and compact streamer that takes 4 HD signals and encodes them into a H.264 compressed format for streaming. It comes with a user-friendly web-based interface, allowing users to
configure various encoding parameters like resolution, bitrate and streaming settings.
| Brand: | OPTUMOS |
|---|---|
| Item NO.: | OP-IP7100SC-4HD |
Features
Key Specifications
| Input Connector | HD 1.4×4 |
| VIDEO | |
| Encoding | H.264 or MPEG 2 |
| Input Resolution |
1920×1080_60P / _50P
1920×1080_60i / _50i
1280×720_60P / _50P
|
| Bitrate MPEG 2 | 8000 ~ 20000 Kbps |
| Bitrate H.264 | 5000 - 20000 Kbps |
| AUDIO | |
| Encoding | MPEG 1 Layer II, AAC, AC3 |
| Output Connector | 1 × 1000 Mbps port |
| Transport Protocol | UDP, RTP |
| Output Transport Stream | SPTS × 4 |
| Broadcasting Mode | Unicast and Multicast |
| Input Voltage | 90 ~ 264VAC, DC 12V 2A |
| Power Consumption | 15 W |
| Dimension (WxHxD) | 205 × 93 × 135 mm |
| Net Weight | 0.9 KG |
| Language | English |
| CLOUD Service | Yes |
