HOTEL GUEST ROOM PHONE
MC-APH-R017B/W

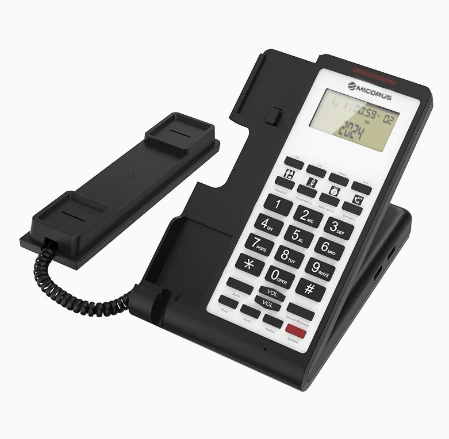

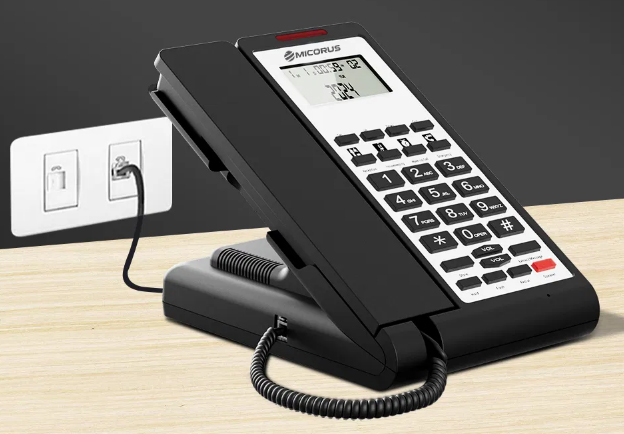

Modern Corded Analogue Guest-Room Phone
The MC-APH-R017B/W is a modern corded analogue landline telephone specifically designed for hotel guest rooms. Its moistureproof body uses durable ABS plastic and a fiberglass PCB to support long service life in hospitality environments.
The device features a high anti-knock handset, DTMF dialling, customisable flash-time options and broad PBX compatibility. It also supports standard 90-150V DC message-waiting light operation for guest notifications.

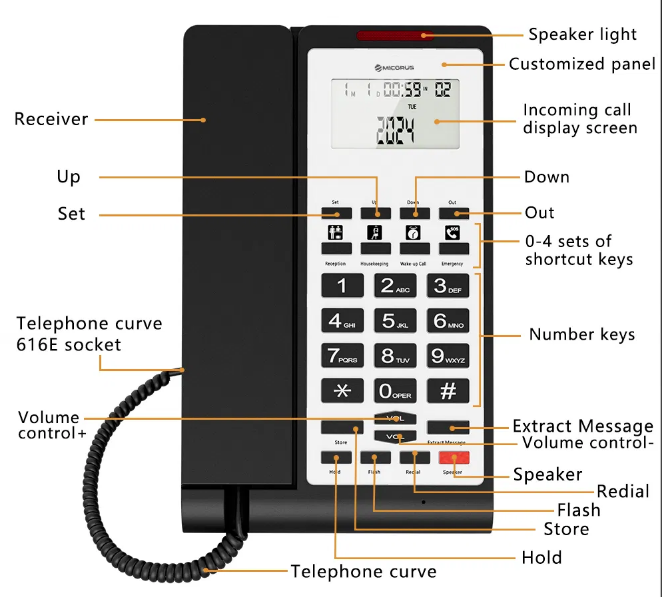

Key Features
- One-Touch Memory Includes 1-8 one-touch memory keys for quick access to hotel services.
- PBX Compatibility Compatible with major PBX systems including Avaya, NEC, Siemens, Philips, Alcatel and Huawei.
- Message Waiting Light Supports standard 90-150V DC message-waiting light voltage for guest notifications.
- Moistureproof Design Specially built to remain stable in hotel environments and varying climates.
- High Durability Anti-knock handset construction supports frequent guest-room use.
- Flexible Flash Time 100ms, 300ms and 600ms flash timing options help match technical PBX requirements.
| General Information & Power | |
| Model | MC-APH-R017B/W |
| Type | Hotel Phone |
| Application | Hotel |
| Function | One-touch memory |
| Dial | DTMF |
| Installation & Physical Details | |
| Material | ABS plastic + fiberglass PCB |
| Feature | Moistureproof |
| Handset | High anti-knock resistance |
| Style | Modern |
| Warranty | 3 years |
| Power & Performance | |
| Flash Time | 100ms, 300ms, 600ms optional; standard 600ms |
| Message Waiting Light | Standard 90-150V DC |
| Operating Temperature | -10C to +40C |
| PBX Compatibility | Avaya, NEC, Siemens, Philips, Alcatel, Huawei |
| Physical Details & Logistics | |
| Package Size | 23.00 x 10.00 x 25.00 cm |
| Gross Weight Per Batch | 1.5 kg |
| Packing Quantity | 18 PCS / CTN |
| Transport Package | Paper box |
| Audio Specifications | |
| Line Inputs | 350mV, 10kΩ |
| Microphone Input | 5mV, 600Ω |
| Frequency Response | 80Hz - 16kHz |
| THD | <1% at RMS, 1kHz |
| Signal-to-Noise Ratio | >70dB |
| Electrical & Environment | |
| Power Supply | DC24V, ±20% |
| Operating Temperature | -20°C to +70°C |
| Humidity | <95% no condensation |
| Physical Specifications | |
| Dimensions | 256(W) x 149(H) x 52(D) mm |
| Weight | 1.5kg |
| File Name | ||
|---|---|---|
|
MC-APH-017B_brochure
|
||
|
MC-APH-R017B-W_Datasheet
|
||
