120 ZONE TOUCH MICROPHONE
MC-EVM-120ZT
The MC-EVM-120ZT touch-screen remote microphone is designed for advanced voice evacuation and public address systems requiring flexible zone selection and professional live announcement control. It allows authorised operators to page individual zones, multiple zones or all zones using a clear touch-screen interface.

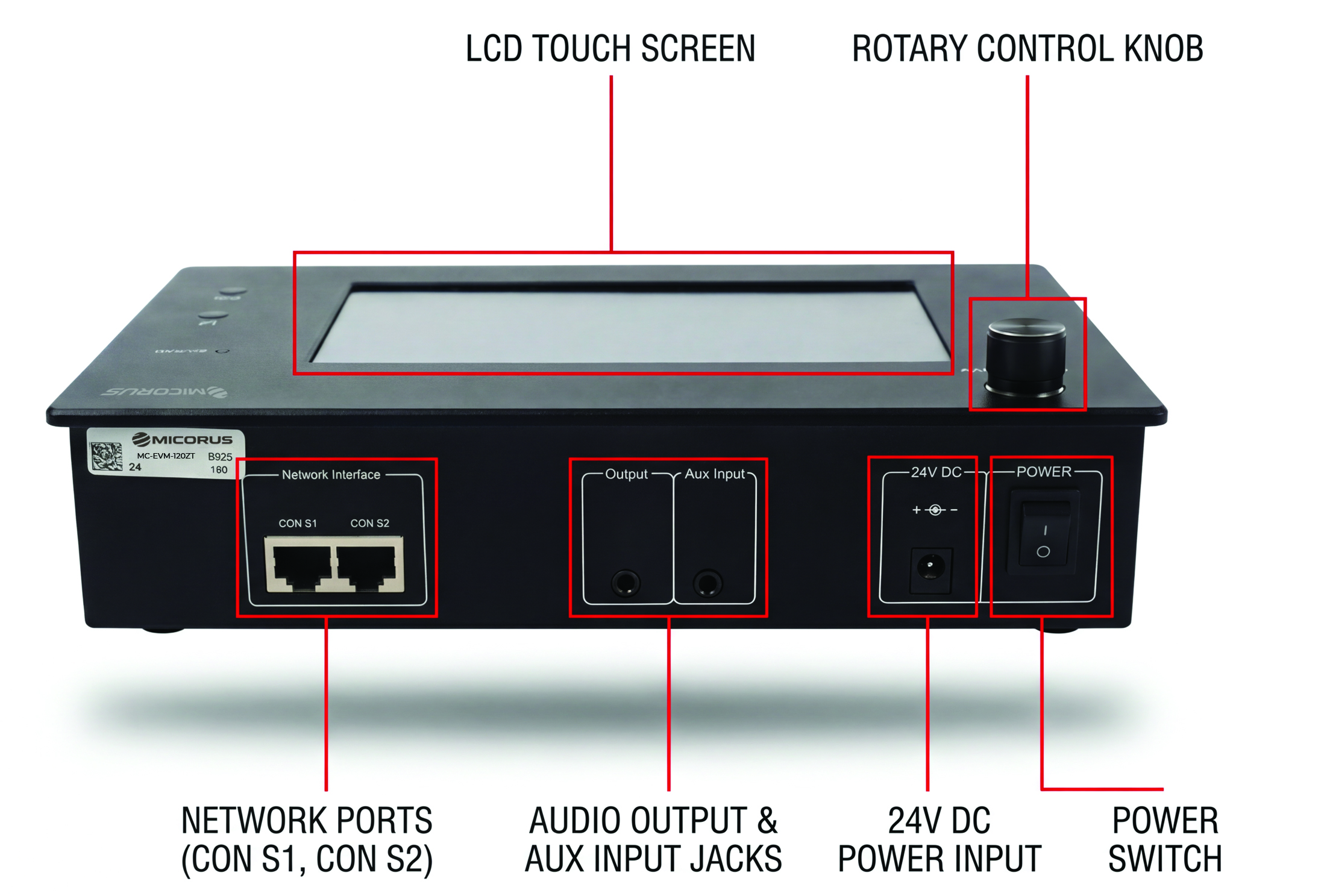

The microphone station supports up to 120 zones and integrates with the voice evacuation controller through standard shielded CAT6 cabling and RJ45 connectors in a redundant loop. Its monitored communication design, 24V DC controller power and configurable talk function make it suitable for large commercial and public buildings.
Key Features
- Touch-screen call station Remote microphone with touch-screen zone control for flexible paging operation.
- 120-zone capacity Each touch microphone supports up to 120 controlled zones.
- Remote microphone capacity Supports up to 32 remote microphones in the system loop.
- PTT / lock operation Talk key supports push-to-talk and lock operation modes.
- 24V DC powered Powered directly from the MC-VEA-500M controller for centralised system integration.
- EN54-16 system use Designed for certified voice evacuation and public address control systems.
- Single / multiple / all-zone paging Supports individual-zone, grouped-zone and all-zone live announcements.
- Fully monitored station The microphone station is real-time monitored by the voice evacuation system.
- Redundant CAT6 cabling Shielded CAT6 cable and RJ45 loop connection support distances up to 600 metres.
- Business and emergency use Supports both commercial live announcements and emergency evacuation messaging.
| General Information | |
| Model | MC-EVM-120ZT |
| Description | Touch Screen Remote Microphone |
| System Capacity & Power | |
| Power Consumption | 3W |
| Zone Capacity | 120 Zones |
| System Capacity | 32 remote microphones |
| Audio Specifications | |
| Parameter | Specification |
| Line Inputs | 350mV, 10kΩ |
| Microphone Input | 5mV, 600Ω |
| Frequency Response | 80Hz - 16kHz |
| THD | <1% at RMS, 1kHz |
| Signal-to-Noise Ratio | >70dB |
| Electrical & Environment | |
| Parameter | Specification |
| Power Supply | DC24V, ±20% |
| Operating Temperature | -20°C to +70°C |
| Humidity | <95% no condensation |
| Physical Specifications | |
| Parameter | Specification |
| Dimensions | 256 x 149 x 52 mm |
| Weight | 1.5kg |
