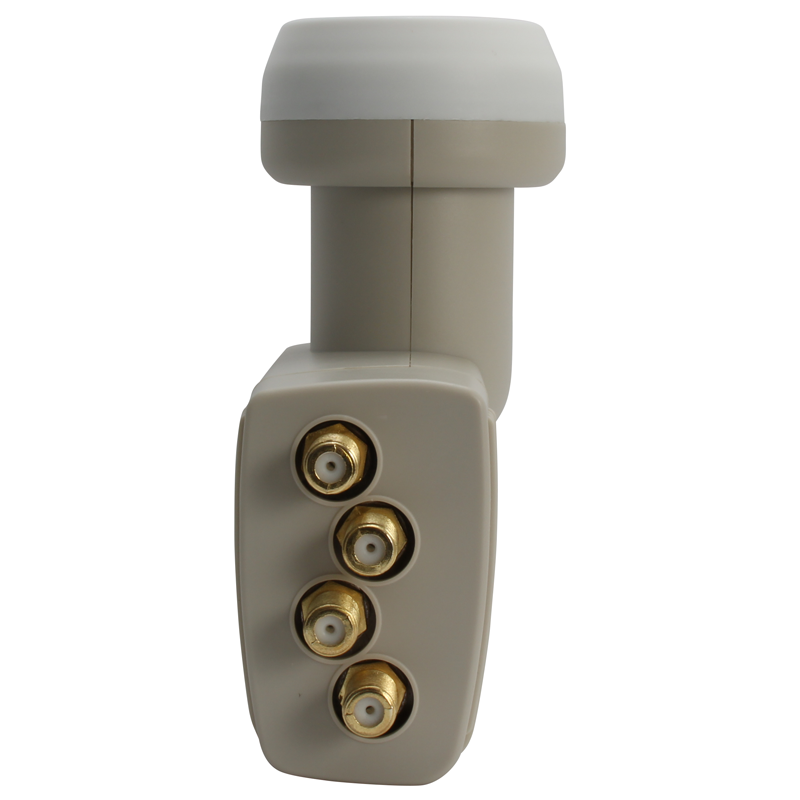

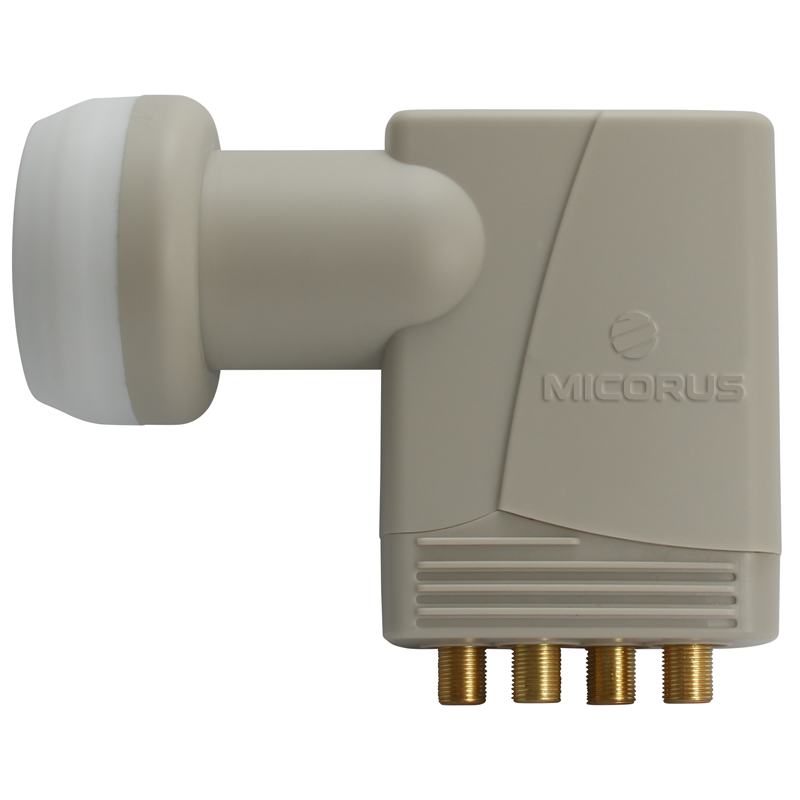

QUAD LNB

MC-QLNB-7005

Professional Quad Universal LNB for Satellite Distribution

The MC-QLNB-7005 is a professional Quad LNB designed to support four independent satellite receiver outputs from a single offset dish. It combines low noise performance, PLL local oscillator technology and strong cross polar isolation for stable DVB-S/S2 reception in residential, hospitality and commercial satellite systems.

Key Features

  • Low-Noise RF Reception Designed to support stable satellite reception with low noise and low phase noise performance.
  • High Conversion Gain Provides typical conversion gain suitable for professional satellite distribution requirements.
  • Weatherproof Design Qualified for outdoor satellite environments and harsh installation conditions.
  • 40 mm Feedhorn Standard Ø40 mm feedhorn format for common offset satellite dish assemblies.
  • F-Female Connectivity Uses F-female connector interface for professional coaxial installations.
  • SMATV Ready Suitable for satellite reception systems, multiswitch installations and TV distribution projects.
CHARACTERISTICS
Phase Noise @ Room Temperature - 1 kHz -55 dBc/Hz
Phase Noise @ Room Temperature - 10 kHz -75 dBc/Hz
Phase Noise @ Room Temperature - 100 kHz -95 dBc/Hz
Image Rejection (min.) 40 dB
Output VSWR 2.0:1
Feedhorn Diameter Ø40 mm
LO Temperature Drifting ±2 MHz
LNB Type Quad
FREQUENCY RANGE
Input Frequency Low Band 10.7–11.7 GHz
Input Frequency High Band 11.7–12.75 GHz
Output Frequency Low Band 950–2150 MHz
L.O. Frequency Low Band 9.75 GHz
L.O. Frequency High Band 10.6 GHz
L.O. Technology PLL
GAIN / ISOLATION / ELECTRICAL
Conversion Gain (typ.) 53–68 dB
Noise Figure Max. 0.3 dB
Cross Polarization Isolation 20 dB
Impedance 75Ω
OPERATIONAL / CONNECTORS
DC Current Consumption 240 mA
Operating Voltage Vertical 11.5–14.0 V/DC
Operating Voltage Horizontal 16.0–20.0 V/DC
Operating Temperature -30 to +60°C
Connector Type F-female
