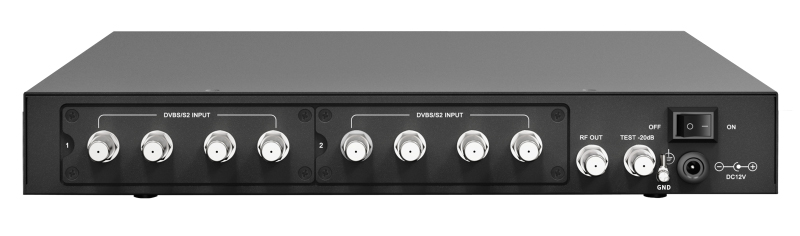

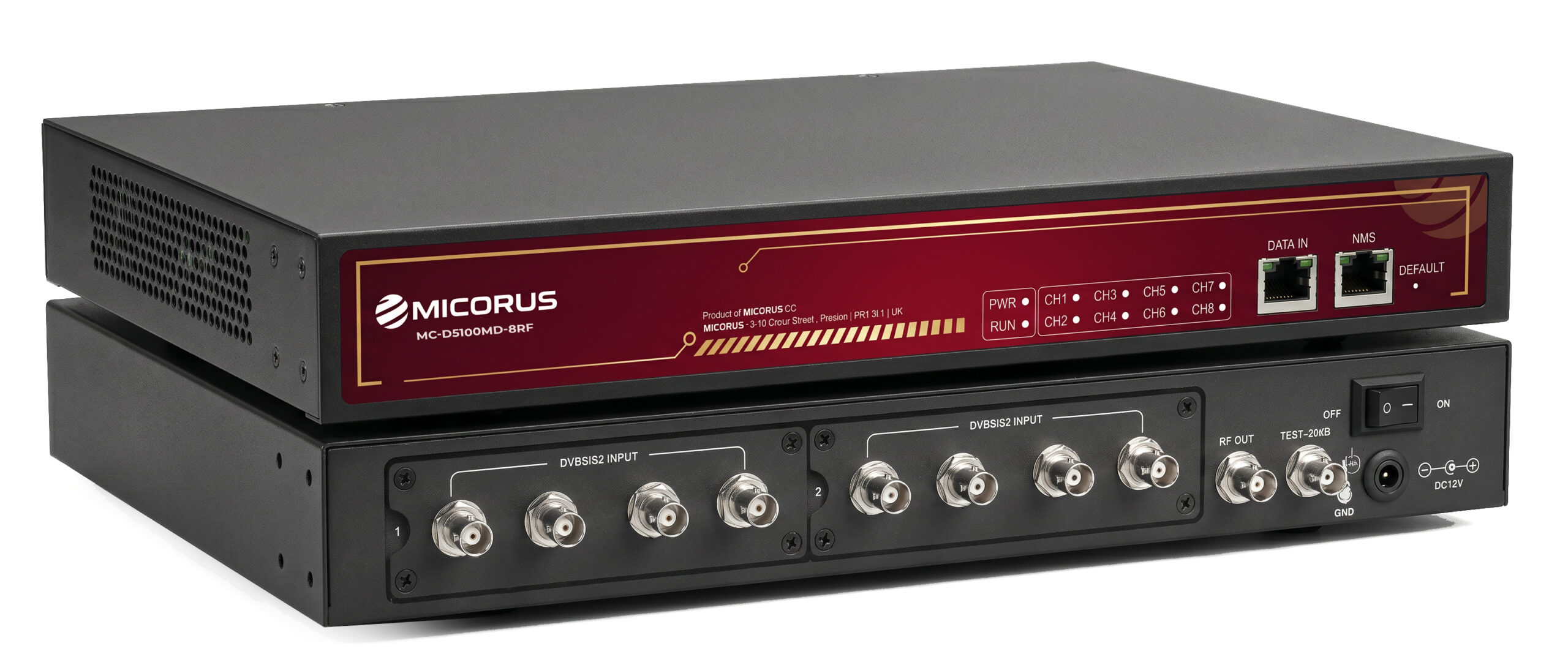

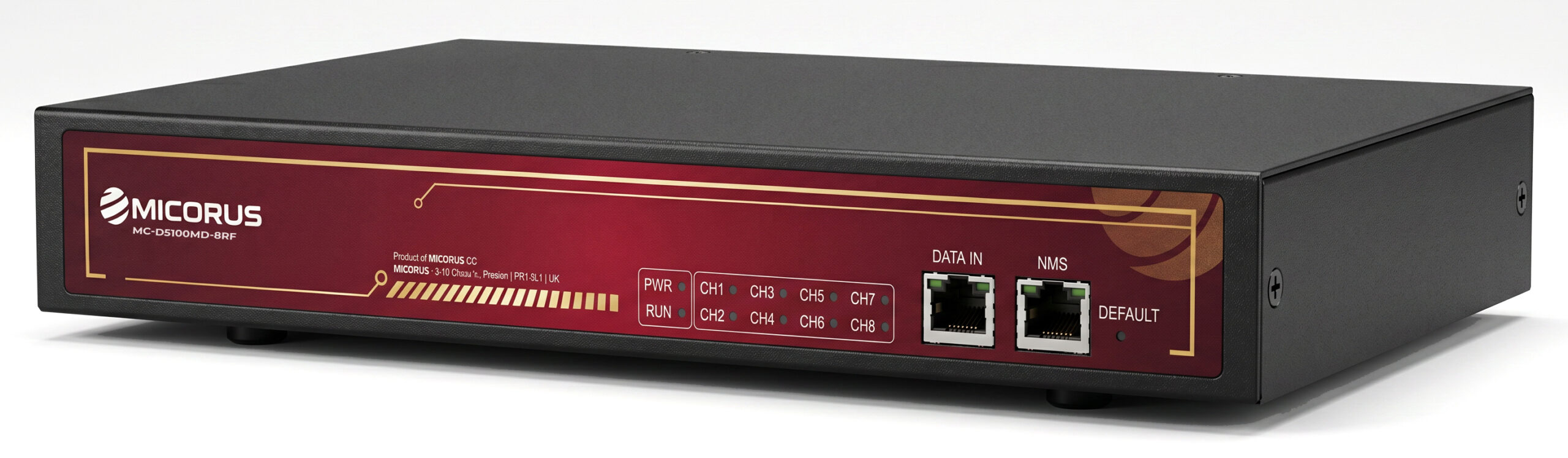

MC-D5100MD-8RF

Professional 8-Tuner DVB-S/S2 to Multi-Standard RF Transmodulator

The MC-D5100MD-8RF is a professional tuner-to-RF transmodulator developed for projects that require reliable conversion of DVB-S/S2 satellite services into digital RF channels. It is suitable for hotels, hospitals, residential buildings and commercial facilities where TV channels must be distributed through existing coaxial infrastructure.

Equipped with eight DVB-S/S2 tuner inputs, the unit can process multiple satellite transponders and generate 4 or 8 RF output frequencies according to project requirements. It also supports up to 256 IP stream addresses, providing flexible signal input and distribution options within one compact platform.

The system supports UDP and RTP input protocols, SPTS/MPTS stream processing, PID remapping and PSI/SI information editing. These capabilities allow operators to structure channel line-ups, manage service information and maintain compatibility with different digital TV standards.

With a web-based management interface, cloud service support and a flexible 1U chassis, the MC-D5100MD-8RF provides a stable and efficient RF headend solution for professional MATV and commercial TV distribution projects

Key Features

Digital RF Output Converts DVB-S/S2 satellite inputs into professional RF output channels for coaxial TV distribution.
Satellite Reception Supports 8 DVB-S/S2 tuner inputs for reliable transponder reception and service processing.
IP Stream Input Supports UDP/RTP input and up to 256 IP stream addresses through Gigabit connectivity.

Web-Based Management Provides a central PC web interface for configuration, monitoring and remote operation.
PID Processing Includes PID remapping, CA PID filtering and PSI/SI information editing for controlled channel output.
Flexible Installation Supports professional 1U rack, wall-mounted or desktop installation according to project design.

SKD715X BASE UNIT PARAMETER
Size	318(L) x 260(W) x 44(H) mm
Installation	1U 19-inch rack, wall-mounted, desktop
Working Temperature / Humidity	-10°C to +45°C, 40% to 70%
Storage Temperature / Humidity	-40°C to +70°C, 40% to 95%
Supply Voltage	DC 12V
Maximum Current	7000mA
Cards	2
Module for Each Card	4 tuner input card

IP INPUT
IP Input Port	1 Gigabit RJ45 network port
Input Format	Supports UDP/RTP protocol input, SPTS/MPTS stream processing and 256 IP addresses

RF OUTPUT
Output Port	F female connector, 1 RF output and 1 -20dB test port output
Output Standard	DVB-C (J.83 A/B/C), DVB-T/T2, DTMB, ISDB-T, ATSC optional
RF Frequency Range	50-870MHz, minimum step 1MHz
Output Level	≥105dBµV, 0-20dB adjust range, step 0.5dB
Out Band Rejection	≥60dB
Output Impedance	75Ω
Output Frequencies	8 frequencies optional

DTMB
Standard	GB20600-2006
Frequencies	4 / 8
Constellation	QPSK, QAM16, QAM64, QAM4_NR, QAM32
FFT	Single carrier, multi-carrier
Sync Frame	420, 595 and 945
Code Rate	0.4, 0.6, 0.8
Interweaving Depth	None, 240, 720
MER	≥36dB
Output Frequency	50-999.999MHz, minimum step 0.001MHz
Output Level	110dBµV ±3dB
Output Level Adjustment Range	0 to -20dB
With Out Band Rejection	≥60dB
Output Impedance	75Ω

ISDB-T
Standard	ANSI/SCTE 2001-B004
Frequencies	4 / 8
Constellation	QAM4, QAM16, QAM64
FFT	2K, 4K, 8K
Guard Interval	1/4, 1/8, 1/16, 1/32
Code Rate	1/2, 2/3, 3/4, 5/6, 7/8
Interweaving Depth	None, 2K, 4K, 8K
Bandwidth	6MHz
MER	≥36dB
Output Frequency	50-999.999MHz, minimum step 0.001MHz
Output Level	110dBµV ±3dB
Output Level Adjustment Range	0 to -20dB
With Out Band Rejection	≥60dB
Output Impedance	75Ω

DVB-T
Standard	ETS 300 744
Frequency	4 / 8
Constellation	QAM4, QAM16, QAM64
FFT	2K, 4K, 8K
Guard Interval	1/4, 1/8, 1/16, 1/32
Code Rate	1/2, 2/3, 3/4, 5/6, 7/8
Interweaving Depth	None, 2K, 4K, 8K
Bandwidth	6MHz, 7MHz, 8MHz
MER	≥36dB
Output Frequency	50-999.999MHz, minimum step 0.001MHz
Output Level	110dBµV ±3dB
Output Level Adjustment Range	0 to -20dB
With Out Band Rejection	≥60dB
Output Impedance	75Ω

DVB-T2
Standard	EN 302 755
Frequencies	4 / 8
Constellation	QAM4, QAM16, QAM64, QAM256
FFT	2K, 2K, 4K, 8K, 16K
Guard Interval	1/4, 1/8, 1/16, 1/32
Code Rate	1/2, 2/3, 3/4, 5/6, 7/8
Interweaving Depth	Supports all 3 Time Interleave options without sub-slicing and no frame jump
Bandwidth	1.7MHz, 6MHz, 7MHz, 8MHz, 10MHz
MER	≥36dB
Output Frequency	50-999.999MHz, minimum step 0.001MHz
Output Level	110dBµV ±3dB
Output Level Adjustment Range	0 to -20dB
With Out Band Rejection	≥60dB
Output Impedance	75Ω

J.83A/C
Standard	Annex A/C
Frequencies	4 / 8
Constellation	16QAM, 32QAM, 64QAM, 128QAM, 256QAM
MER	≥36dB
Symbol Rate	3.600-6.960Msps
Output Frequency Range (Adjustable)	50-999.999MHz, minimum step 0.001MHz
Output Level	110dBµV ±3dB
Output Level Adjustment Range	0 to -20dB
Out Band Rejection	≥60dB
Output Impedance	75Ω

J.83B
Standard	Annex B
Frequencies	4 / 8
Constellation	64QAM, 256QAM
Symbol Rate	5.05641 MS/s (64QAM), 5.360537 MS/s (256QAM)
MER	≥36dB
Output Frequency Adjustment Range	50-999.999MHz, minimum step 0.001MHz
Output Level	110dBµV ±3dB
Output Level Adjustment Range	0 to -20dB
With Out Band Rejection	≥60dB
Output Impedance	75Ω

ATSC
Standard	8VSB
Frequencies	4 / 8
Bandwidth	6MHz
MER	≥36dB
Output Frequency	50-999.999MHz, minimum step 0.001MHz
Output Level	110dBµV ±3dB
Output Level Adjustment Range	0 to -20dB
With Out Band Rejection	≥60dB
Output Impedance	75Ω
